Made-to-order packaging

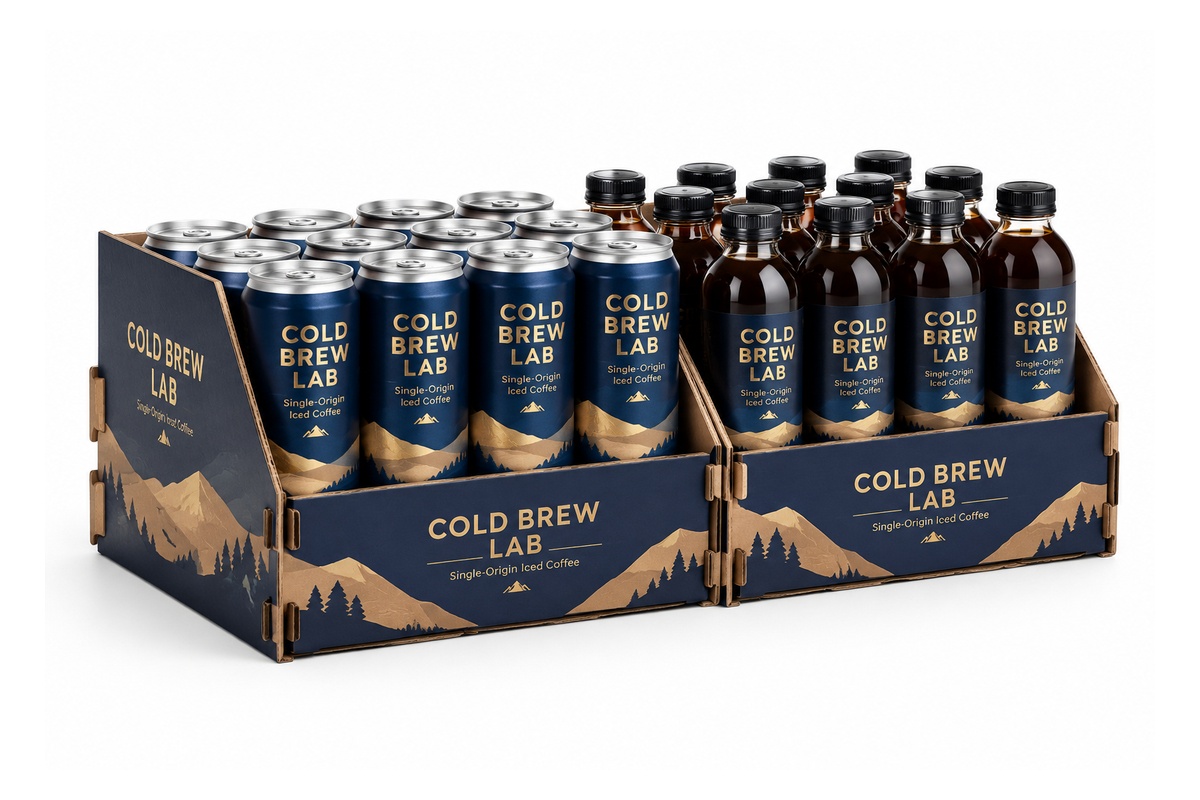

Modular Interlocking Corrugated Retail Endcap Tray
A modular interlocking micro-corrugated retail tray system designed to snap together across supermarket aisle endcaps.
State shelf dimensions, bottle/can diameter and weight, modular clip count, and artwork files.
Application context
Where this format can begin.
- Canned craft beverages and bottled cold brew coffees
- Gourmet condiments, oils, and artisanal jars
- Supermarket aisle end-cap seasonal merchandising
Structure
Define the opening, loading and closure.
A low-profile B-flute display tray with male-female side interlocking tabs allowing horizontal bay expansion.
Interlocking tongue-and-groove tabs keep multiple display trays neatly aligned and rigid across wide retail shelves.
Material & board
Review construction against the packed product.
- Kraft Corrugated Board
- B-Flute
Sturdy B-flute corrugated cardboard provides high bottom stiffness under heavy glass bottle weights.
Printing & surface
Place artwork on the confirmed dieline.
- Offset Printing
- Matte Lamination
Deep navy blue, artisanal kraft brown, and warm gold foil branding for high-end craft beverage merchandising.
Features
Add only what supports use and packing.
- Locking Tabs
Reinforced double-thick front lip prevents merchandise from sliding forward during customer selection.
Inserts & accessories
Plan product organization with the outer box.
An insert is optional and should be assessed from the product arrangement and handling brief.
If internal support is needed, prototype it with the complete product, accessories and practical finger clearance.
Sampling
Use the sample that answers the current question.
A material reference helps compare surfaces, a blank structural sample checks fit and assembly, and a printed sample reviews the combined structure and artwork. Scope, cost and timing are confirmed before preparation.
Review sampling options →Factory reassurance
One working specification from review to production.
Final dimensions, material, artwork version, quantity, sample approval and packing instructions are recorded for the production discussion. Manufacturing feasibility, schedule and commercial terms remain subject to quotation confirmation.
